If you’ve ever wondered what WebAssembly (Wasm) is and how it fits into the service mesh ecosystem, this is the article you want to read. You’ll learn about Envoy extensibility and Wasm extensions.


We’ll explain what Wasm can do and set the stage by talking a bit about extensibility in Envoy Proxy. Envoy is a service (sidecar) and edge proxy (gateway) that can be configured through APIs. Next, we’ll talk about how Wasm fits into Envoy, covering Wasm Service and Proxy-Wasm.

We wrote this article for Wasm beginners, and we assume you don’t have any in-depth Wasm knowledge. In a companion article, we’ll explore Wasm using Kubernetes and Istio so that you can be comfortable using both. You can check out the Istio Fundamentals course to learn how to get started with Istio.

What is WebAssembly (Wasm)?

WebAssembly, more commonly known as Wasm, is a portable binary format for executable code that relies on an open standard. Developers code in their preferred language and compile that into a Wasm module. While there are implementation details to writing for Wasm, using a familiar source language helps developers get started quickly.

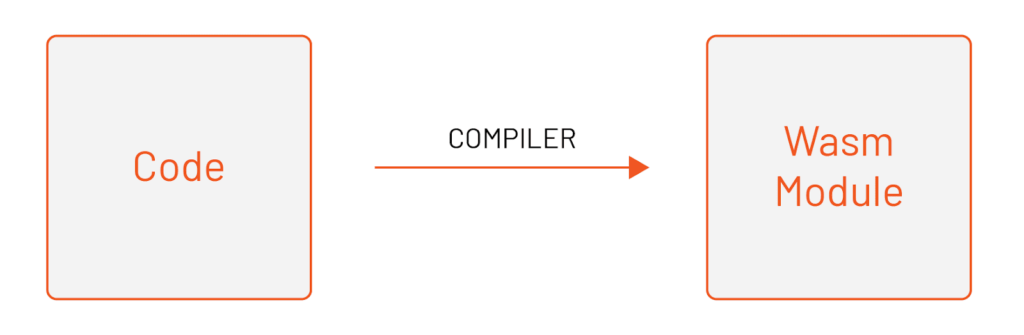

Compiling code to Wasm module
Compiling code to Wasm module

The Wasm module is isolated from the host environment and executed in a memory-safe sandbox called a virtual machine (VM). The modules can communicate with the host environment through an API.

The main goal of Wasm is to enable high-performance applications on web pages. For example, let’s say you’re building a web application with Javascript. You could write some code in Go (or potentially any other language) and compile it into a binary file (Wasm module). You could then run the compiled Wasm module in the same sandbox as your Javascript web application.

The initial idea behind Wasm was to run in the web browser. However, we can embed virtual machines into other host applications and execute them. This is exactly what Envoy does.

A bit about Envoy and extensibility

Before we talk about Wasm in the context of Envoy, let’s mention a couple of ways we can extend Envoy. At the heart of the Envoy proxy lies a variety of filters that provide features such as network routing, observability, and security.

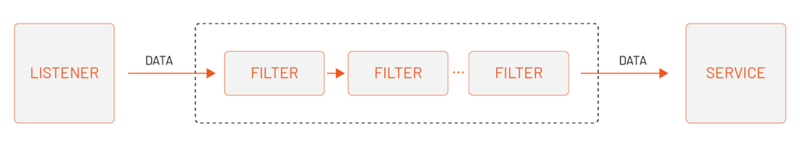

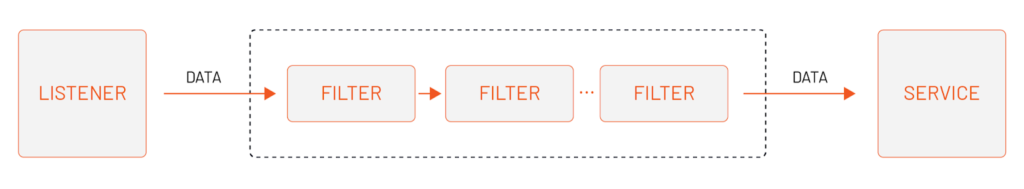

Envoy filter chains
Envoy filter chains

With a combination of different filters (network, HTTP filters), you can augment the incoming requests — you can translate protocols, collect statistics, add/remove/update headers, perform authentication, and much more.

There are various pre-built filters already available for you to use (e.g., the envoy.filters.http.ratelimit filter that allows you to configure rate limiting for your services, or CSRF filter, CORS filter, and more). You should always check the latest version for what it supports before considering extending Envoy. However, you can also write your own filters and extend Envoy functionality.

Let’s take the example of adding a header to the request to introduce Envoy’s options for extensibility.

Native C++ filters

One approach is to write your filter in Envoy’s native language — C++ — and package it with Envoy. This would require you to recompile Envoy and maintain your own version of it. To add a header, we’d have to write a new filter in C++ then link it with the Envoy binary. Here’s an example that demonstrates how to create a new filter that adds an HTTP header. Taking this route isn’t very practical for multiple reasons. You shouldn’t be maintaining your own version of Envoy just because of the filters you use.

Lua based filters

A second approach is to write filters using Lua scripts. An existing filter called HTTP Lua filter allows you to include a Lua script in line with the configuration. Here’s an example of what a configured Lua HTTP filter that adds a new header to the response would look like:

You could use this approach if the filter you’re creating is not too complex. You can write the Lua script directly in the YAML configuration, or point to a script file. One downside of this approach is that either your script is part of the configuration, or you have to figure out a way to copy the script file and make it accessible to the Envoy proxy. Both of these choices make it hard to develop and test. If your filter is more complex, you’re better off picking one of the other options.

Wasm-based extensions

Another approach is to write an Envoy filter as a separate Wasm module and have Envoy dynamically load it during runtime.

At the moment, you can configure EnvoyFilter resource to load a Wasm module by pointing to a local .wasm file that’s accessible by the Envoy proxy. The second option is to use remote fetching and provide a URI. In this case, Envoy downloads the .wasm extension for you. Those using Istio can look forward to native Wasm support in version 1.11. Once available, sidecars can use WASM modules published to an OCI compliant registry.

To recap, using Wasm allows you to use a different programming language to write your filter (no need to write a native C++ filter!) and it doesn’t require you to recompile and maintain your own special version of Envoy. If we continue with the header example, we could write the extension in Go and add an additional header to the response in that code.

Wasm and Wasm extensions in Envoy

Envoy embeds a subset of a V8 virtual machine (VM). V8 is a high-performance JavaScript and WebAssembly engine written in C++ and used in Chrome and Node.js (along with other applications and platforms).

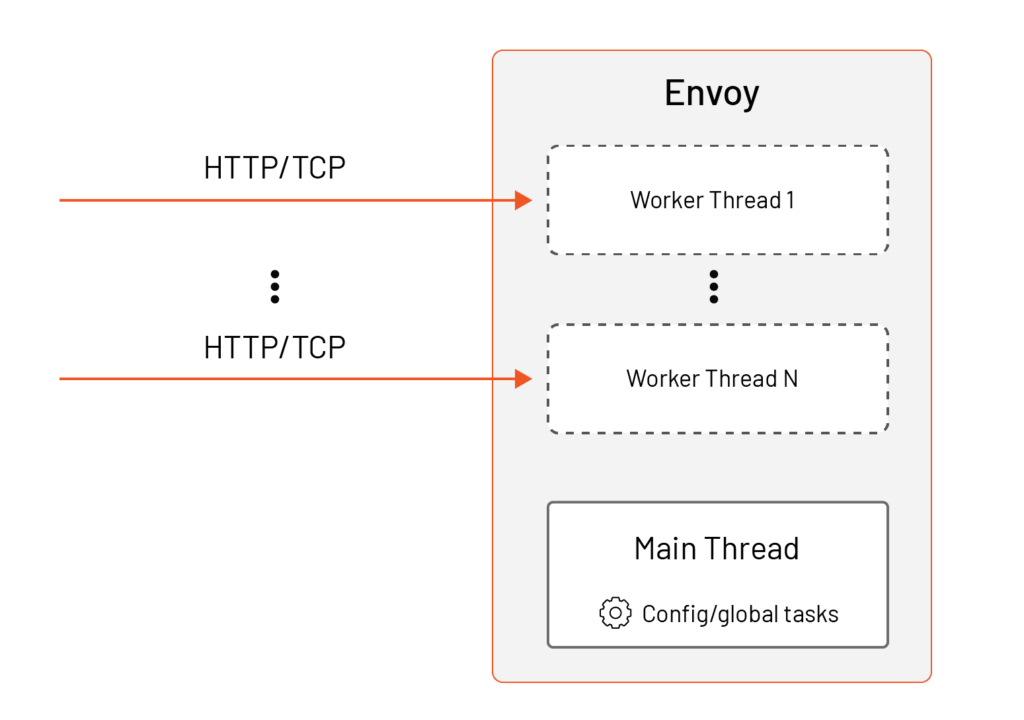

Envoy operates using a multi-threaded model. That means there’s one main thread that is responsible for handling configuration updates and executing global tasks.

In addition to the main thread, there are also worker threads that are responsible for proxying individual HTTP requests and TCP connections. The worker threads are independent of each other. For example, a worker thread processing one HTTP request will not impact — and is not impacted by — other worker threads processing other requests.

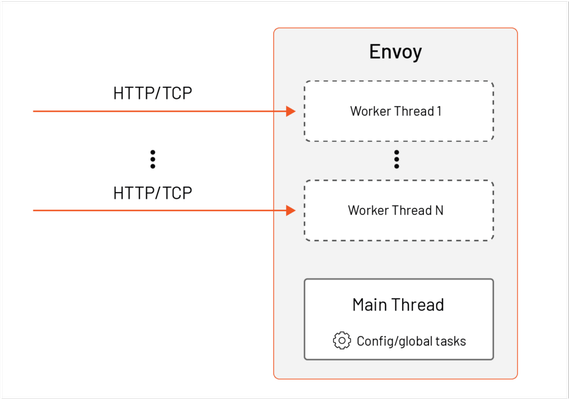

Envoy worker threads
Envoy worker threads

To avoid any expensive cross-thread synchronization in terms of higher memory usage, each thread owns its own replica of resources — which also includes the Wasm VMs.

The Proxy-Wasm extension gets distributed as a Wasm module. That means files with the .wasm extension. At runtime, Envoy loads every unique Wasm module (all *.wasm files) into a unique Wasm VM. Since Wasm VM is not thread-safe (i.e. multiple threads would have to synchronize access to a single Wasm VM), Envoy creates a separate replica of Wasm VM for every thread on which the extension will be executed. Consequently, every thread might have multiple Wasm VMs in use at the same time.

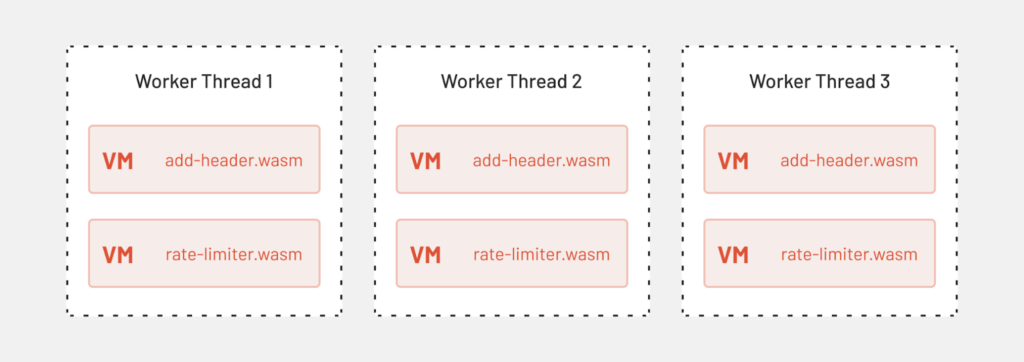

Let’s look at an example of how two extensions get loaded in worker threads. One sample extension is the add-header.wasm that adds a custom header, and the second one is a custom rate limiter we created called rate-limiter.wasm.

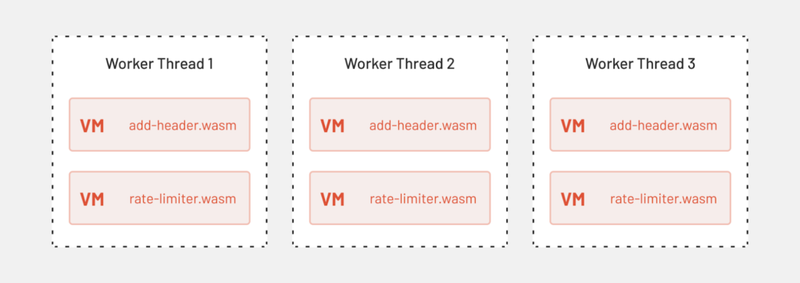

Envoy VMs
Envoy VMs

Wasm Service

Wasm extensions can either be HTTP filters, Network Filters, Access Loggers, or a dedicated extension type called Wasm Service. They get executed inside a Wasm VM on a worker thread. As we mentioned, the threads are independent and they are inherently unaware of request processing that’s happening on other threads. They are also stateless.

However, Envoy also supports stateful scenarios. For example, you could write an extension that aggregates stats such as request data, logs, or metrics across multiple requests — which essentially means across multiple worker threads. For this scenario, you’d use the Wasm Service extension and an API for cross-thread communication (e.g., Message Queue and Shared Data).

Unlike HTTP filters, Network Filters, or Access Loggers, Wasm Service extensions are not called as part of the request processing flow. Instead, they get executed on the main thread (rather than worker threads). Because they are executed on the main thread, these extensions don’t have an impact on the request latency.

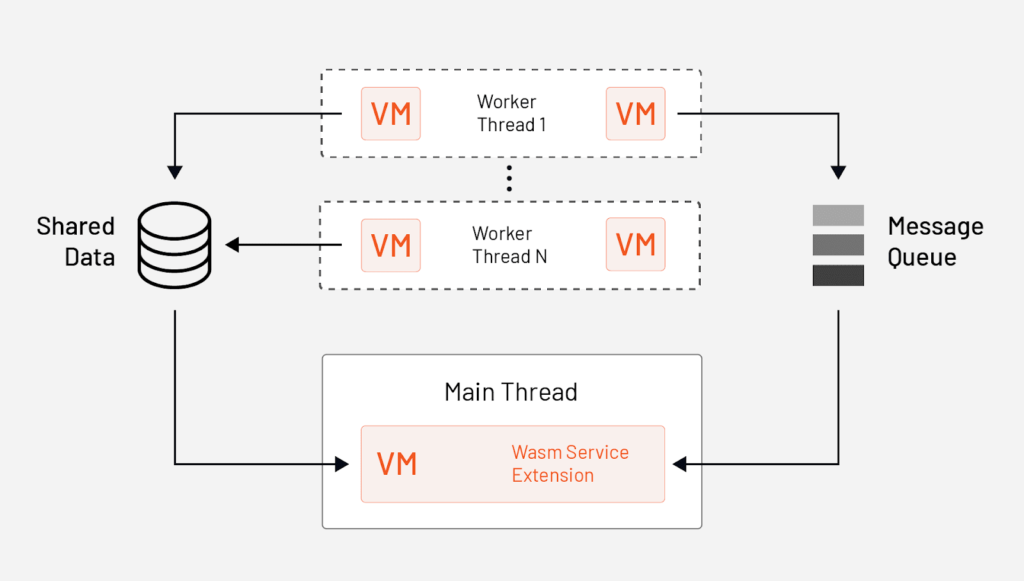

Wasm APIs
Wasm APIs

An example scenario for a Wasm Service extension would be to use the Message Queue API to subscribe to a queue and receive messages sent by the HTTP filter, Network Filter, or Access Loggers from the worker threads. The Wasm Service extension can then aggregate data that are received from the worker threads.

WASM Service Extensions aren’t the only way to persist data. You can also call out to HTTP or gRPC APIs. Moreover, you can perform actions outside requests using the timer API (see an example here).

Proxy-Wasm

All of these APIs are defined by a component called Proxy-Wasm. Proxy-Wasm is a proxy-agnostic ABI (Application Binary Interface) standard that specifies how proxies (host) and the Wasm modules interact. These interactions are implemented in the form of functions and callbacks.

The APIs in Proxy-Wasm are proxy agnostic, which means they work with Envoy proxies as well as any other proxies (MOSN for example) that implement the Proxy-Wasm standard. This makes your Wasm filters portable between different proxies; they aren’t tied to Envoy only.

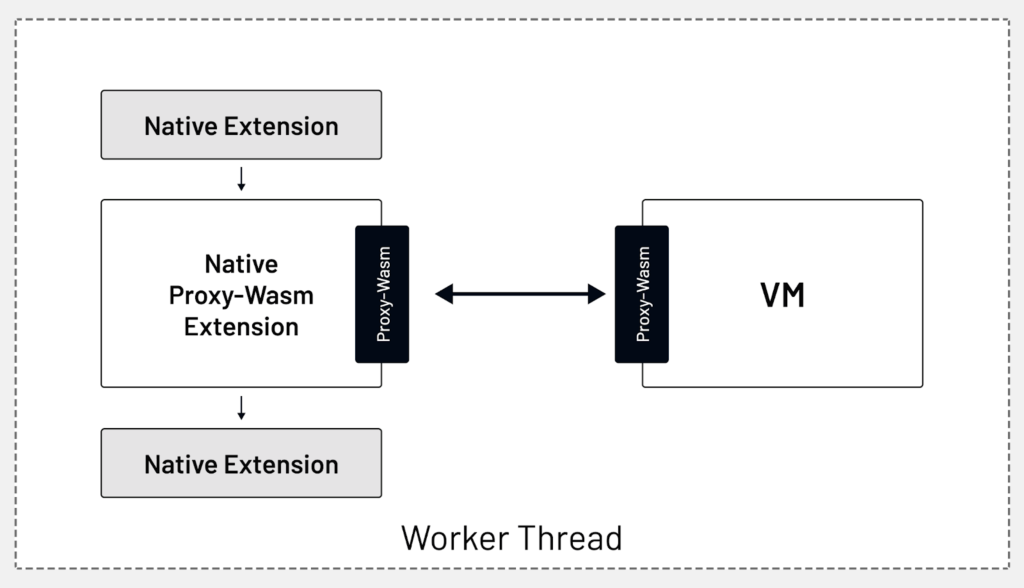

As the requests come into Envoy, they are being processed by the built-in filters. The data flows through the native or Lua filters and eventually goes through the Proxy-Wasm extension as shown in the figure below. Once the filter processes the data, the chain will continue (or stop, depending on the result from your filter).

Proxy-Wasm extension
Proxy-Wasm extension



Conclusion

This article introduced you to the world of Wasm modules. We started by explaining what Wasm is and what the original purpose for it was. Then we talked about different Envoy extensibility points — the native C++ filters, Lua-based filters, and of course the Wasm-based filters.

In the next article, we’ll learn how to use func-e CLI to get started and quickly scaffold a Wasm module. We will dive a bit into the generated code to explain the lifecycle methods and the order in which they get executed once the Wasm filter starts and is processing the requests. Finally, we’ll show you how to use the EnvoyFilter resource to configure the Wasm module and deploy it to a Kubernetes cluster running Istio.
